Usage:
Due to the space limitation or in case of elevating materials at a large slope, sidewall conveyor belt is often used to prevent the scatter of conveying materials. IIt is an effective way of lifting materials in confined sape. It is fit for conveying materials at a large slope between 0°C ~ 90°C.
Characteristics:
1. Materials can be conveyed at a large slope in about 90 degree angle.
2. Wide rang materials ( large capacity )can be handled and can not be scattered.
3. The slope of conveying can be raised from horizontal to sloping or from sloping to horizontal.
4. The conveyor is simple in structure, flexible in arrangement and less space requirement.
Attention:
The carcass material and strength of the belt can be selected according to the requirements of users
|
Name
|
Pattern
|
Application
|
|
Straight-flange side wall conveyor belt |
There is a straight-flange sidewall higher than belt on either side of the belt.The height of the sidewall is 10-30mm. |
It can convery power,granular,paste and liquid materials that scatter easily. |
|
Wedge-shape sidewall conveyor belt |
There is non-connecting wedge-shape sidewall higher than belt on either side of the belt.The height of sidewall is about 20-80mm. |
It can convery power,granular and small lump materils which scatter eassily. |
|
Sinuate flange sidewall conveyor belt |
There is continuous sinuate flange sidewall higher than belt on either side of the belt.The height of the sidewall is about 60-500mm. |
It can convery power,granular small lump,paste and liquid materials that scatter easily. |
The width of sidewall conveyor belt that thecorporation can provide is no more than 3100m.
We can provide such products as conventional-type,heat-resistant type,cold-resistant type,acid and alkali resistant type,static electricity,conductive-type,high-temperature resistant type(<=150 c)and hygiene-type,etc.
The Conveyor belt with other type of sidewall or special charactres require,we could negotiate to trialmanufacture.
3.1 Application: Fit for conveing material under steeply inclination betoeen 0-90 degree.
3.2 Features:
1.The max.inclination angle can be upto 90 degrees when conveying materials.
2.Big converying ability and preventing materials from sliding off.
3.Easy to change the transportation angle either from level to inclination or from inclination to level.
4.Conveyor occupies small area.
4.Sidewall and Cleat
|
Base Belt Width(mm)
|
Sidewall Height (mm)
|
Cleat height H1(mm)
|
Sidewallwidth Bf(mm)
|
Effective Belt Width Br(mm)
|
Free Edge R(mm)
|
|
300
|
40
|
35
|
25
|
25
|
35
|
|
60
|
55
|
50
|
120
|
40
|
|
|
80
|
75
|
||||
|
400
|
60
|
55
|
50
|
180
|
60
|
|
80
|
75
|
||||
|
100
|
90
|
||||
|
500
|
80
|
75
|
50
|
250
|
75
|
|
100
|
90
|
||||
|
120
|
110
|
||||
|
650
|
100
|
90
|
50
|
350
|
100
|
|
120
|
110
|
||||
|
160
|
140
|
75
|
300
|
||
|
800
|
120
|
110
|
50
|
460
|
120
|
|
160
|
140
|
75
|
41
|
||
|
200
|
180
|
Why you choose us?
1.Super high quality.
2.Competitive price.
3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
Is the product sample available?
Yes,all product samples are available for you to test the quality.
Is OEM available?
Yes,OEM is available.We have professional designer to help your brand promotion.
Are the products tested before shipping?
Yes,all of our products were qualified before leave the factory,we test every batch every day.
Delivery details?
Within 10-20 days in general or depends on quality of the order.
Packaging details?

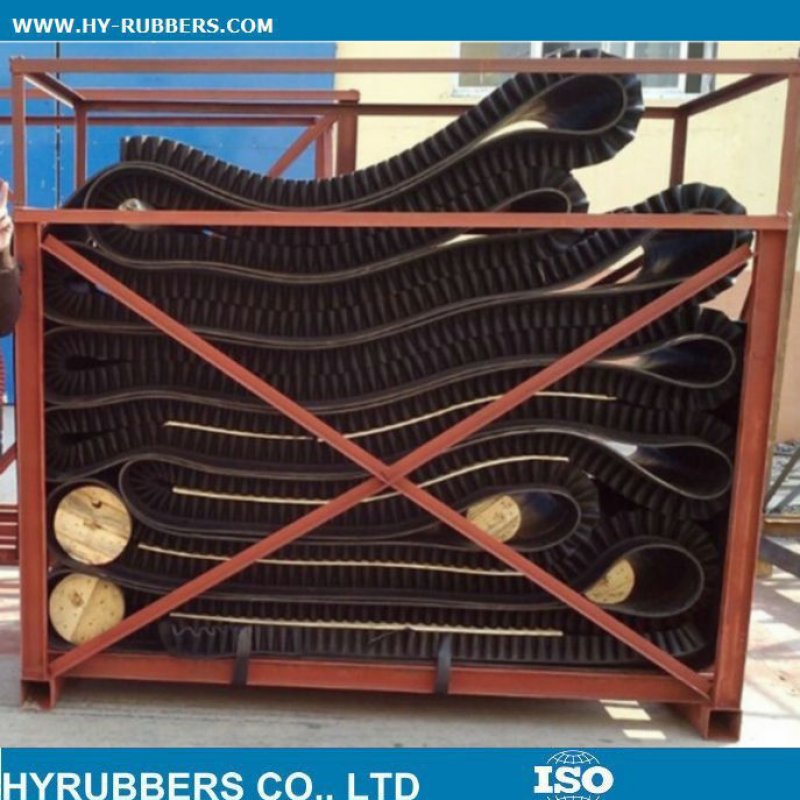

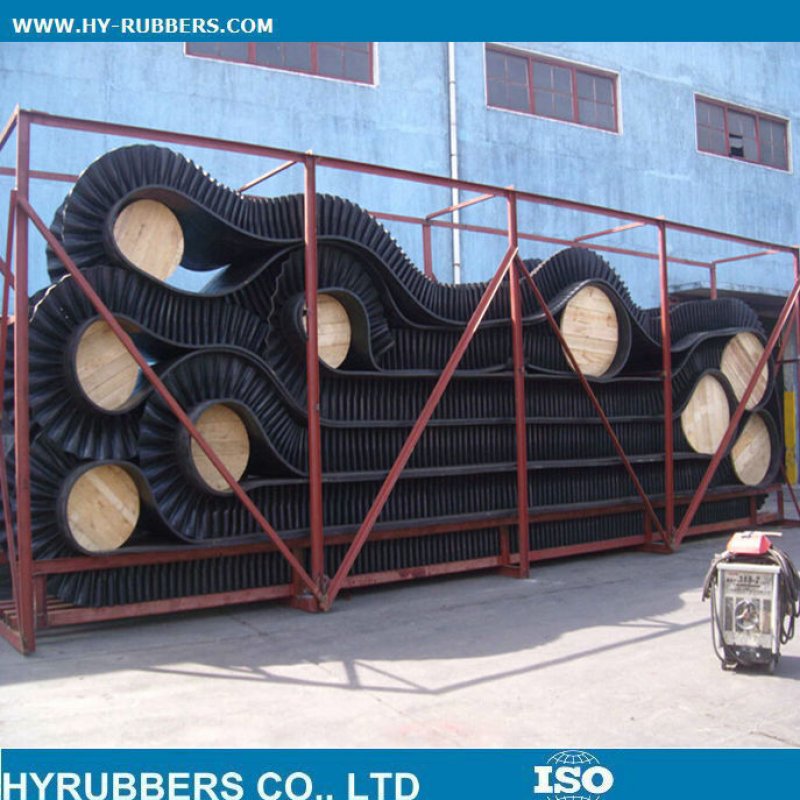

Packed in steel crate.
